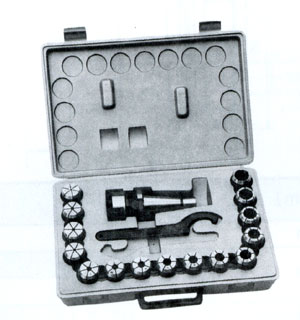

| DIN6388-EOC25A Collet Chuck Sets |
|
Item No.
|
Pcs
Set
|
d |
Shank
|
Item No.
|
Pcs
Set
|
d |
Shank
|
mm |
inch |
mm |
inch |
3363-R8/8 |
8
|
3
5
8
12
15
18
22
26
|
1/8
1/4
3/8
1/2
5/8
3/4
7/8
1 |
R8 |
3363-R8/15 |
15
|
3, 4
5, 6
8, 10
12, 14
15
|
1/8, 3/16
1/4, 5/16
3/8, 7/16
1/2, 9/16
5/8, 11/16
3/4, 13/16
7/8, 15/16
1
|
R8 |
3363-30/8 |
ISO30 |
3363-30/15 |
ISO30 |
3363-40/8 |
ISO40 |
3363-40/15 |
ISO40 |
3363-45/8 |
ISO45 |
3363-45/15 |
ISO45 |
3363-50/8 |
ISO50 |
3363-50/15 |
ISO50 |
3363-MS3/8 |
MS3 |
3363-MS3/15 |
MS3 |
3363-MS4/8 |
MS4 |
3363-MS4/15 |
MS4 |
3363-MS5/8 |
MS5 |
3363-MS5/15 |
MS5 |
3363-1"/8 |
1" |
3363-1"/15 |
1" |
3363-1-1/4"/8 |
1-1/4" |
3363-1-1/4"/15 |
1-1/4" |
|
| |
|
|
Item No.
|
Pcs
Set
|
d |
Shank
|
Item No.
|
Pcs
Set
|
d |
Shank
|
mm |
inch |
mm |
inch |
3364A-R8/4 |
4
|
6
10
12
16 |
1/4
3/8
1/2
5/8
|
R8 |
3364B-R8/4 |
4
|
6
10
12
16
|
1/4
3/8
1/2
5/8 |
R8 |
3364A-30/4 |
ISO30 |
3364B-30/4 |
ISO30 |
3364A-40/4 |
ISO40 |
3364B-40/4 |
ISO40 |
3364A-50/4 |
ISO50 |
3364B-50/4 |
ISO50 |
3364A-MS2/4 |
MS2 |
3364B-MS2/4 |
MS2 |
3364A-MS3/4 |
MS3 |
3364B-MS3/4 |
MS3 |
3364A-MS4/4 |
MS4 |
3364B-MS4/4 |
MS4 |
3364A-MS5/4 |
MS5 |
3364B-MS5/4 |
MS5 |
|
| Straight Shank Collets |
|
Item No. |
Shank dia(mm) |
Hole size(mm) |
L(mm) |
3366-12-d |
16 |
4, 5, 6, 8, 10, 12 |
45 |
3366-16-d |
22 |
4, 5, 6, 8, 10, 12, 14, 16 |
55 |
3366-16A-d |
20 |
4, 5, 6, 8, 10, 12, 14, 16 |
50 |
3366-20-d |
25 |
4, 5, 6, 8, 10, 12, 14, 16, 18, 20 |
60 |
3366-25-d |
32 |
4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25 |
65 |
3366-32-d |
42 |
4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 28, 30, 32 |
80 |
3366-32A-d |
40 |
4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 28, 30, 32 |
80 |
|

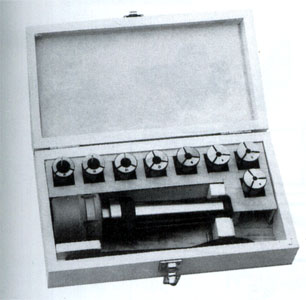

| Milling Chuck Sets |
|
Item No. |
Pcs/set |
Rand of collet size |
Shank |
d1(mm) |
3366-12S |
6 |
4~12 |
R8 MS2
MS3 MS4
MS5 ISO30
ISO40 ISO50 |
50 |
3366-16S |
8 |
4~16 |
56 |
3366-20S |
10 |
4~20 |
63 |
3366-25S |
11 |
4~25 |
70 |
3366-32S |
12 |
6~32 |
90 |
Collet size |
4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 28, 30, 32 |
|

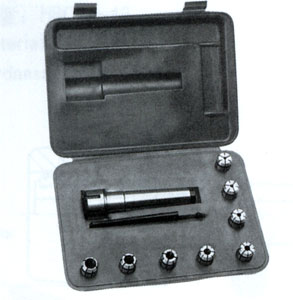

| Collet Chuck Sets |
|
Item No.
|
Pcs
Set
|
d |
Shank
|
mm |
inch |
3366-30/8 |
8 |
3, 5, 6, 8, 10, 12, 14, 16 |
1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 9/16, 5/8 |
ISO30 |
3366-40/8 |
ISO40 |
3366-MS3/8 |
MS3 |
3366-MS4/8 |
MS4 |
3366-MS5/8 |
MS5 |
3366-1"/8 |
1" |
3366-1-1/4"/8 |
1-1/4" |
|

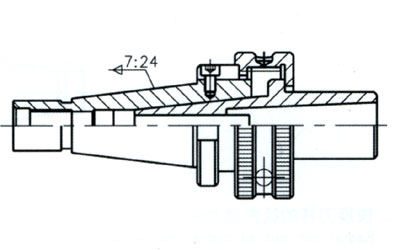

| Quick Action Milling Chuck |
|
|
3367 |
ISO40 |
ISO50 |
- 1 quick-action mount
- 1 collet chuck & 9 Collets (6, 8, 10, 12, 14, 16, 18, 20, 25)
- 1 mount MS1
- 1 mount MS2
- 1 mount MS3
- 1 scroll chuck B12
- 1 setup arbor
- 1 hook spanner
|
- 1 quick-action mount
- 1 collet chuck & 9 Collets (6, 8, 10, 12, 14, 16, 18, 20, 25)
- 1 mount MS2
- 1 mount MS3
- 1 mount MS4
- 1 scroll chuck B18
- 1 setup arbor
- 2 hook spanner
|
|

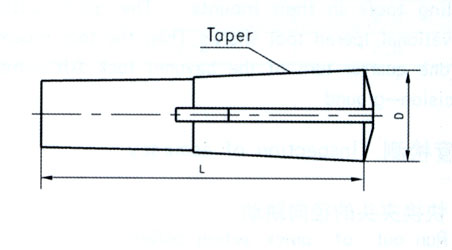

| Taper Collets |
|
Item No. |
3368-MS1-d |
3368-
MS2-d |
3368-
MS3-d |
3368-
MS4-d |
3368-
7B&S-d |
3368-
9B&S-d |
Taper |
MS1 |
MS2 |
MS3 |
MS4 |
B£¦S7 |
B£¦S9 |
d(inch) |
1/16-5/16 |
1/8-1/2 |
1/8-3/4 |
1/8-1 |
1/8-1/2 |
1/8-3/4 |
d(mm) |
2 3 4 6 8 |
2 3 5 6 10 11 12 |
3 5 6 8 10 11 13 14 16 17 18 |
3 4 7 9 12 15 19 21 23 25 |
2 3 5 6 8 10 11 12 |
3 5 6 8 10 11 12 13 14 15 16 17 18 |
D(mm) |
12.2 |
18 |
24.1 |
31.5 |
18.4 |
27.08 |
L(mm) |
27 |
68 |
86 |
108 |
79.4 |
105 |
|
