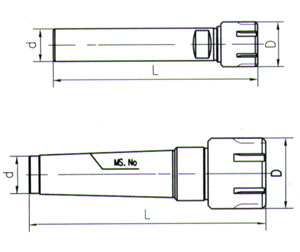

Mill Chuck Series

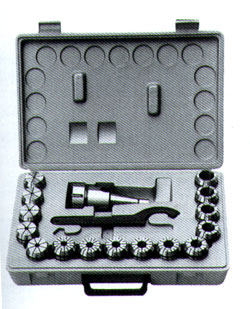

Set of Milling Collets and Chucks
3358
Item No.
Pcs
Set
d
Shank
Item No.
Pcs
Set
d
Shank
mm
inch
mm
inch
R8-ER16/8
8
2
3
4
5
6
7
8
10
5/32
1/8
3/16
7/32
1/4
5/16
11/32
3/8
R8
R8-ER32/6
6
6
8
10
12
16
20
1/4
5/16
3/8
1/2
5/8
3/4
R8
30-ER16/8
7:24 30
30-ER32/6
7:24 30
40-ER16/8
7:24 40
40-ER32/6
7:24 40
50-ER16/8
7:24 50
50-ER32/6
7:24 50
MS2-ER16/8
MS2
MS2-ER32/6
MS2
MS3-ER16/8
MS3
MS3-ER32/6
MS3
MS4-ER16/8
MS4
MS4-ER32/6
MS4
3/4"-ER16/8
3/4"
3/4"-ER32/6
3/4"
1"-ER16/8
1"
1"-ER32/6
1"
R8-ER25/6
6
4
6
8
10
12
16
1/8
3/16
5/16
3/8
1/2
5/8
R8
R8-ER32/12
12
3, 4
5, 6
8, 10
12,14
15, 16
18, 20
3/32, 1/8
3/16, 1/4
5/16, 3/8
7/16, 1/2
9/16, 5/8
11/16, 3/4
R8
30-ER25/6
7:24 30
30-ER32/12
7:24 30
40-ER25/6
7:24 40
40-ER32/12
7:24 40
50-ER25/6
7:24 50
50-ER32/12
7:24 50
MS2-ER25/6
MS2
MS2-ER32/12
MS2
MS3-ER25/6
MS3
MS3-ER32/12
MS3
MS4-ER25/6
MS4
MS4-ER32/12
MS4
3/4"-ER25/6
3/4"
3/4"-ER32/12
3/4"
1"-ER25/6
1"
1"-ER32/12
1"
R8-ER25/10
10
3
4
5
6
8
10
12
14
15
16
5/32
1/8
3/16
1/4
3/8
5/16
7/16
1/2
9/16
5/8
R8
R8-ER40/8
8
3
5
8
12
15
18
22
26
1/8
1/4
3/8
1/2
5/8
3/4
7/8
1
R8
30-ER25/10
7:24 30
30-ER40/8
7:24 30
40-ER25/10
7:24 40
40-ER40/8
7:24 40
50-ER25/10
7:24 50
50-ER40/8
7:24 50
MS2-ER25/10
MS2
MS2-ER40/8
MS2
MS3-ER25/10
MS3
MS3-ER40/8
MS3
MS4-ER25/10
MS4
MS4-ER40/8
MS4
3/4"-ER25/10
3/4"
3/4"-ER40/8
3/4"
1"-ER25/10
1"
1"-ER40/8
1"
-
-
-
-
-
R8-ER25
15
3, 4
5, 6
8, 10
12, 14
15, 16
18, 20
22, 24
26
1/8, 3/16
1/4, 5/16
3/8, 7/16
1/2, 9/16
5/8, 11/16
3/4, 13/16
7/8, 15/16
1
R8
-
-
30-ER25
7:24 30
-
-
40-ER25
7:24 40
-
-
50-ER25
7:24 50
-
-
MS2-ER25
MS2
-
-
MS3-ER25
MS3
-
-
MS4-ER25
MS4
-
-
3/4"-ER25
3/4"
-
-
1"-ER25
1"

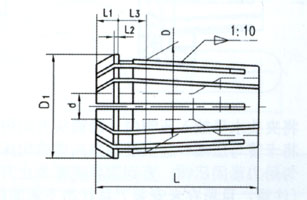

DIN6388 EOC A Collets
3359
Item No.
D
D1
d
L
L1
L2
L3
3359-6A-d
10
11.5
1, 2, 3, 4, 5, 6,
21
3.5
0.5
4
3359-8A-d
12.65
14.5
1,, 2, 3, 4, 5, 6, 7, 8
26
4
0.8
4.5
3359-10A-d
15.15
17.2
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
30
4.5
0.8
4.5
3359-12A-d

17.75
19.8
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
34
5
1.1
4.5
3359-16A-d
22.65
25.5
2~16
40
5.5
1.2
5.5
3359-20A-d
27.4
29.8
2~20
45
6
1.35
6
3359-25A-d
32.9
35.05
2~25
52
6
1.4
6
3359-32A-d
41.3
43.7
4~32
60
6
1.45
7
3359-40A-d
49.7
52.2
6~40
68
6
1.45
8
3359-50A-d
61.1
63.8
8~50
80
7
1.55
9
DIN6388 EOC B Collets
3360
Item No.
D
D1
d
L
L1
L2
L3
3360-16B-d
22.65
25.5
2~16
40
5.5
1.2
9.5
3360-20B-d
27.4
29.8
2~20
45
6
1.35
10
3360-25B-d
32.9
35.05
2~25
52
6
1.4
10
3360-32B-d
41.3
43.7
4~32
60
6
1.45
11
3360-40B-d
49.7
52.2
6~40
68
6
1.45
12
3360-50B-d
61.1
63.8
8~50
80
7
1.55
13
EOC Clampling Nut
Item No.
D(mm)
L(mm)
T
3361-06
18
14
M14x1
3361-08
26
19
M20x1.5
3361-10
30
19
M22x1.5
3361-12
35
20
M27x1.5
3361-16
43
24
M33x1.5
3361-20
50
28
M42x2
3361-25
60
30
M48x2
3361-32
72
33.5
M60x2.5
3361-40
85
37
M68X2.5
3361-50
100
43
M80X2.5
3361
EOC Spanner
Item No.
L(mm)
Dia of Nuts(mm)
3362-06
90
18~21
3362-08
125
22~26
3362-10
140
28~32
3362-12
154
34~36
3362-16
168
38~42
3362-20
190
45~52
3362-25
210
55~62
3362-32
230
68~72
3362-40
240
78~85
3362-50
250
100~110
3362
