ring gauge(<1><2><3>)
Staight PIPE THEND PING gaugeS Fith thread sealed taper pipe thend ping gauges
conform:hb4226-4227-89 conform:fed-std-h28/7<npsm npsl npsh>

gauge

code

thread/

perinch

pitch

(mm)

gauge

code

thread

/perich

gauge

code
g1/16 28 0.907 g1 1/2 11 2.309
g1/8 28 0.907 g1 3/4 11 2.309
g1/4 19 1.337 g2 11 2.309
g3/8 19 1.337 g2 1/4 11 2.309
g1/2 14 1.814 g2 1/2 11 2.309
g5/8 14 1.814 g2 3/4 11 2.309
g3/4 14 1.814 g3 11 2.309
g7/8 11 1.814 g3 1/2 11 2.309
g1 11 2.309 g4 11 2.309
g1 1/8 11 2.309 ¡­¡­ 11 2.309
g1 1/4 11 2.309 g6 11 2.309
gauge code thread/perinch pitch(mm)
1/16-27 27 0.941
1/8-27 27 0.941
1/4-18 18 1.441
3/8-18 18 1.441
1/2-14 14 1.814
3/4-14 14 1.814
1/11.5 11.5 2.209
1.1/4-11.5 11.5 2.209
1.2/2-11.5 11.5 2.209
2-11.5 11.5 2.209
¡­¡­ 11.5 2.209
6 11.5 2.209
the metric strengthen thread ring gauge
conform:hb4226-4227-89

specifi

cation

 coarse fine

accur

acy

specif

ication

 coarse fine

accur

acy
pitch1 pitch2 pitch3 pitch4 pitch5 pitch6 pitch1 pitch2 pitch3 pitch4 pitch5 pitch6
mj1.6 0.35 0.20

4h5h

4g6g

 mj36.0 4.00 3.00 2.00 1.50

4h5h

4g6g
mj1.8 0.35 0.20         mj39.0 4.00 3.00 2.00 1.50
mj2.0 0.40 0.25         mj42.0 4.00 4.00 3.00 2.00 1.5
mj2.2 0.45 0.25         mj45.0 4.00 4.00 3.00 2.00 1.5
mj2.5 0.45 0.35         mj48.0 4.00 4.00 3.00 2.00 1.5
mj3.0 0.50 0.35         mj52.0 4.00 4.00 3.00 2.00 1.5
mj3.5 0.60 0.35         mj56.0 5.50 4.00 3.00 2.00 1.5
mj4.0 0.70 0.50         mj60.0 5.50 4.00 3.00 2.00 1.5
mj5.0 0.80 0.50         mj64.0 6.00 4.00 3.00 2.00 1.5
mj6.0 1.00 0.75 0.50       mj68.0 6.00 4.00 3.00 2.00 1.5 1.5
mj8.0 1.25 1.00 1.00 1.25     mj72.0   6.00 4.00 2.00 2.0 1.5
mj10.0 1.50 1.25 1.00 0.75     mj76.0   6.00 4.00 2.00 2.0 1.5
mj12.0 1.75 1.50 1.25 1.00     mj80.0   6.00 4.00 2.00 2.0 1.5
mj14.0 2.00 1.50 1.25 1.00     mj85.0   6.00 4.00 2.00 2.0 1.5
mj16.0 2.25 2.00 1.00 0.75     mj90.0   6.00 4.00 2.00 2.0 1.5
mj18.0 2.50 2.00 1.50 1.00     mj95.0   6.00 4.00 2.00 2.0 1.5
mj20.0 2.50 2.00 1.50 1.00     mj100   6.00 4.00 3.00 2.0 1.5
mj22.0 2.50 2.00 1.50 1.00     mj105   6.00 4.00 3.00 2.0 1.5
mj24.0 3.00 2.00 1.50 1.00     mj110   6.00 4.00 3.00 2.0 1.5
mj27.0 3.00 2.00 1.50 1.00     mj115   6.00 4.00 3.00 2.0 1.5
mj30.0 3.50 3.00 2.00 1.50 1.00   ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­
mj33.0 3.50 3.00 2.00 1.50     mj320

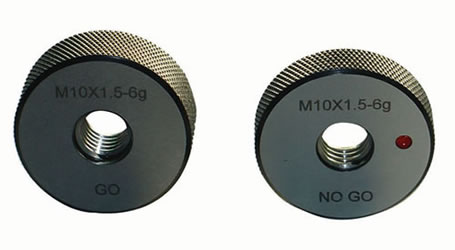

the metric thtead ring gauge
conform:GB3934-83 DIN13 DIN2280-89 iSO1502-96
nominal size coarse fine

accu

racy

 nominal size coarse

accu

racy
pitch1 pitch2 pitch3 pitch4 pitch5 pitch6 pitch1 pitch1 pitch1 pitch1 pitch1
M1.0 0.25 0.20

4h

4h5h

5g

5h

5h6h

6g

6h

7g

7h

 M33.0 3.50 3.0 2.0 1.5 1.0 0.75

4h

4h5h

5g

5h

5h6h

6g

6h

7g

7h
M1.1 0.25 0.20         M36.0 4.00 3.0 2.0 1.5 1.0
M1.2 0.25 0.20         M39.0 4.00 3.0 2.0 1.5 1.0 1.00
M1.4 0.30 0.20         M42.0 4.50 4.0 3.0 2.0 1.5 1.00
M1.6 0.35 0.20         M45.0 4.50 4.0 3.0 2.0 1.5 1.00
M1.8 0.35 0.20         M48.0 5.00 4.0 3.0 2.0 1.5 1.00
M2.0 0.40 0.25         M52.0 5.00 4.0 3.0 2.0 1.5 1.00
M2.2 0.45 0.25         M56.0 5.50 4.0 3.0 2.0 1.5 1.00
M2.5 0.45 0.35         M60.0 5.50 4.0 3.0 2.0 1.5 1.00
M3.0 0.50 0.35         M64.0 6.00 4.0 3.0 2.0 1.5 1.00
M3.5 0.60 0.35         M68.0 6.00 4.0 3.0 2.0 1.5 1.00
M4.0 0.70 0.50         M72.0 6.00 4.0 3.0 2.0 1.5 1.00
M5.0 0.80 0.50         M76.0 6.00 4.0 3.0 2.0 1.5 1.00
M6.0 1.00 0.75 0.50       M80.0 6.00 4.0 3.0 2.0 1.5 1.00
M8.0 1.25 1.00 0.75 0.50     M85.0 6.00 4.0 3.0 2.0 1.5 1.00
M10.0 1.50 1.25 1.00 0.75 0.50   M90.0 6.00 4.0 3.0 2.0 1.5 1.00
M12.0 1.75 1.50 1.25 1.00 0.75 0.5 M95.0 6.00 4.0 3.0 2.0 1.5 1.00
M14.0 2.00 1.50 1.25 1.00 0.75 0.5 M100 6.00 4.0 3.0 2.0 1.5 1.00
M16.0 2.00 1.50 1.00 0.75 0.50   M105 6.00 4.0 3.0 2.0 1.5 1.00
M18.0 2.50 2.00 1.50 1.00 0.75 0.5 M110 6.00 4.0 3.0 2.0 1.5 1.00
M20.0 2.50 2.00 1.50 1.00 1.75 0.5 M115 6.00 4.0 3.0 2.0 1.5 1.00
M22.0 2.50 2.00 1.50 1.00 0.75 0.5 M120 6.00 4.0 3.0 2.0 1.5 1.00
M24.0 3.00 2.00 1.50 1.00 0.75 0.5 M125 6.00 4.0 3.0 2.0 1.5 1.00
M27.0 3.00 2.00 1.50 1.00 0.75   ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­ ¡­¡­
M30.0 3.50 3.00 2.00 1.50 1.00 0.75 M320
taper pipe theno ping gauges american stanodard thread ring gauge
conform:fed-std-h28/7 npsm npsl npsh conform:fed-std-h28/12
gauge code thread/perinch pitch(mm)
1/16-27 27 0.941
1/8-27 27 0.941
1/4-18 18 1.411
3/8-18 18 1.411
1/2-14 14 1.814
3/4-14 14 1.814
1-11.5 11.5 2.209
1 1/4-11.5 11.5 2.209
1 1/2-11.5 11.5 2.209
2-11.5 11.5 2.209
¡­¡­ 11.5 2.209
6 11.5 2.209
gauge code

thread/

perinch

 gauge code

thread/

perinch
1/4-16acme 16 1 1/8-5acme 5
5/16-14acme 14 1 1/4-5acme 5
3/8-12acme 12 1 3/8-4acme 4
7/16-12acme 12 1 1/2-4acme 4
1/2-10acme 10 1 3/4-4acme 4
5/8-8acme 8 2-4acme 4
3/4-6acme 6 ¡­¡­ 4
7/8-6acme 6 6 4
1-5acme 5
taper pipe thend plug gauges(American standard) sealed dry type
conform:zb J42 037-89

gauge code thread/perinch pitch(mm) taper
1/16-27npt 27 0.941 1:16
1/8-27npt 27 0.941
1/4-18npt 18 1.411
3/8-18npt 18 1.411
1/2-14npt 14 1.814
3/4-14npt 14 1.814
1-11.5npt 11.5 2.209
1 1/4-11.5npt 11.5 2.209
1 1/2-11.5npt 11.5 2.209
2-18npt 11.5 2.209
2 1/2-8npt 8.0 3.175
3-8npt 8.0 3.175
¡­¡­ ¡­¡­ ¡­¡­
npt 8.0 3.175
gauge code thread/perinch pitch(mm) taper
1/16-27npt 27 0.941 1:16
1/8-27npt 27 0.941
1/4-18npt 18 1.411
3/8-18npt 18 1.411
1/2-14npt 14 1.814
3/4-14npt 14 1.814
1-11.5npt 11.5 2.209
1 1/4-11.5npt 11.5 2.209
1 1/2-11.5npt 11.5 2.209
2-18npt 11.5 2.209
2 1/2-8npt 8.0 3.175
3-8npt 8.0 3.175
¡­¡­ ¡­¡­ ¡­¡­
npt 8.0 3.175
