Vices Series(1 2)
The Tooling Precision
Item No.
B
(mm)
H
(mm)
Smax
(mm)
L
(mm)
3510-50
50
25
65
155
3510-63
63
32
85
190
3510-73
73
35
100
210
3510-80
80
40
100
220
3510-88
88
40
125
250
3510-100
100
45
125
260
3510-125A
125
50
160
300
3510-125B
125
50
210
350
3510
Item No.
B
(mm)
H
(mm)
Smax
(mm)
L
(mm)
3511-25
25
10
25
65
3511-50
50
25
65
140
3511-63
63
32
85
175
3511-73
73
35
100
190
3511-80
80
40
100
200
3511-88
88
40
125
235
3511-100
100
45
125
245
3511-125
125
50
160
285
3511-150A
150
50
200
330
3511-150B
150
50
250
380
3511-150C
150
50
300
430
3511
The Modular Precision Vises
Item No.
B
(mm)
H
(mm)
Smax
(mm)
L
(mm)
3512-100
100
30
100
270
3512-125
125
40
150
345
3512-150A
150
50
200
420
3512-150B
150
50
300
520
3512-175A
175
60
200
455
3512-175B
175
60
300
555
3512-175C
175
60
400
655
3512-200A
200
65
200
495
3512-200B
200
65
300
595
3512-200C
200
65
400
695
3512 series
Item No.
B
(mm)
H
(mm)
Smax
(mm)
L
(mm)
3513-100
100
30
100
270
3513-125
125
40
150
345
3513-150A
150
50
200
420
3513-150B
150
50
300
520
3513-175A
175
60
200
455
3513-175B
175
60
300
555
3513-175C
175
60
400
655
3513-200A
200
65
200
495
3513-200B
200
65
300
595
3513-200C
200
65
400
695
3513 series
Main Nttachnent of Modular Vises
  • A PECES OF BOX WRENCH
  • A PEECE OF T-WRENCH
  • FOUR PEECES OF VISE HOLDING CLAMPS
  • A SET INCLUDE FOUR PIECES
  • POSITIONING KEY-NUTS
  • A SET INCLUDE TWO PIECES

3514 series

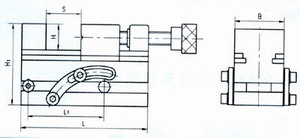

Precision Sine Tool Vise
3515 series
Item No.

B
(mm)

H
(mm)
H1
(mm)
Smax
(mm)
L
(mm)
L1
Adjustable
angle range
mm
in
3515-50
50
25
89.6
60
140
100
5
0~45°
3515-63
63
32
94.6
85
175
100
5
0~45°
3515-73
73
35
11
90
190
100
5
0~45°
3515-80
80
40
121
95
200
100
5
0~45°
3515-88
88
40
125
120
235
100
5
0~45°
3515-100
100
45
139.2
125
245
100
5
0~45°
3515-125
125
50
154.2
160
285
200
5
0~45°
3516 series
Item No.

B
(mm)

H
(mm)
H1
(mm)
Smax
(mm)
L
(mm)
L1
Adjustable
angle range
mm
in
3516-50
50
25
89.6
60
140
100
5
0~45°
3516-63
63
32
94.6
85
175
100
5
0~45°
3516-73
73
35
11
90
190
100
5
0~45°
3516-80
80
40
121
95
200
100
5
0~45°
3516-88
88
40
125
120
235
100
5
0~45°
3516-100
100
45
139.2
125
245
100
5
0~45°
3516-125
125
50
154.2
160
285
200
5
0~45°

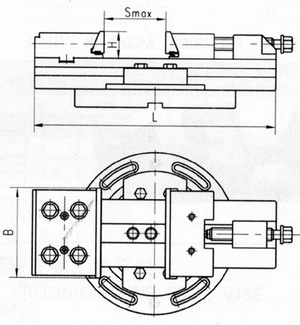

Universal Tilting Vise
3517
