Collet Series

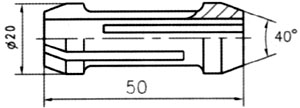

17A Collets
3322 series
Be used on lathe type TBYJ200-17A to cutting for clamping rod.
Item No.
3322R-
3322S-
3322H-
Type
Round
Square
Hex
Hole Size
(D)mm
2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17
2, 3, 4, 5, 6, 7, 8, 9, 10, 12
2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Two Sides Collets
3323 series
Hole size: 5, 6, 6.5, 7, 7.5, 8.5, 9, 9.5, 10, 10.5

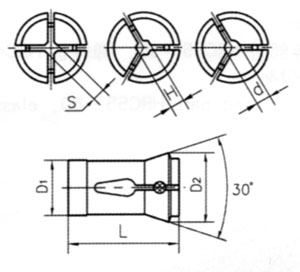

DIN6343 Clamping Collets
3324
Item No.
Hole size
Round
Square
Hex
3324-1
13
8
10
3324-2
16
11
13
3324-3
22
15
19
3324-4
22
15
19
3324-5
26
18
22
3324-6
30
21
26
3324-7
36
25
30
3324-8
42
29
36
3324-9
50
35
42
3324-10
60
42
52
DIN6344 Feeding Collets
3325
Item No.
Hole size
Round
Square
Hex
3325-14
10
7
8
3325-18
12
8
10
3325-24
18
13
16
3325-30
24
17
20
3325-42
36
25
30
3325-60
52
36
45

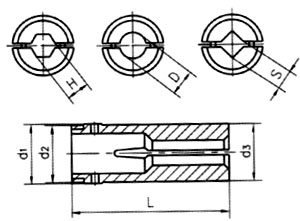

36K&56k Feeding Collets
3326A
Item No.
Type
Clamping
range
M
(left)
3326A-56K-R
Round
16~56
M72x2
3326A-56K-H
Hex
18~46
M72x2
3326A-56K-S
Square
15~38
M72x2
3326A-36K-R
Round
3~35
M54x1.5
3326A-36K-H
Hex
3~30
M54x1.5
3326A-36K-S
Square
9~24
M54x1.5
3326B
Item No.
Type
Clamping
range
M
(left)
3326B-56K-R
Round
16~56
M47x1.5
3326B-56K-H
Hex
18~46
M47x1.5
3326B-56K-S
Square
15~38
M47x1.5
3326B-36K-R
Round
3~35
M63x2
3326B-36K-H
Hex
3~30
M63x2
3326B-36K-S
Square
9~24
M63x2

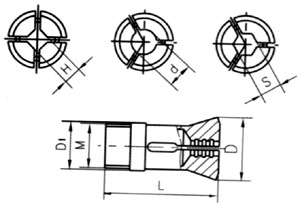

Feeding Colltes
3327 series
Item No.
D(mm)
M
L(mm)
Clamping
range
3327-10
10
M6x0.75
52
2~8.5
3327-12
12
M7x0.75
52
2~10
3327-14
14
M8x1
52
3~12.5
3327-16
16
M8x1
52
3~14
3327-19
19
M10x1
60
4~18
3327-22
22
M10x1
60
16~20
3327-25
25
M14x1
60
4~23
3327-30
30
M18x1.5
65
6~28
3327-40
40
M25x1.5
70
14~38
