Centers Series
High Speed Precision for Powerful Live Centers
3406 & 3406N

Model
MS.NO

D

d

d1

L

l1

l2

d3

max.speed
rpm

max.loab
(N)

Accuracy
(mm)

3406-2

2

45

20

17.78

74

25

43

-

5000

150

0.005

3406-3

3

60

24

23.82

92

35

50

-

4300

400

0.005

3406-4

4

76

32

31.26

108

42

58

-

3200

750

0.005

3406-5

5

96

42

44.39

130

48

72

-

2600

2000

0.007

3406-6

6

110

52

63.34

152

62

79

-

2000

4500

0.01

3406-80

metr.80

150

60

80.00

146

75

59

-

1800

8000

0.01

3406-90

metr.90

150

60

90.00

147

76

59

-

1800

10000

0.01

3406-100

metr.100

180

62

100.00

159

76

69

-

1600

15000

0.015

3406N-2

2

45

20

17.78

85

36

43

8

5000

100

0.005

3406N-3

3

60

24

23.82

103

46

50

10

4300

300

0.005

3406N-4

4

76

32

31.26

126

60

58

12

3200

600

0.005

3406N-5

5

96

42

44.39

153

71

72

16

2600

1400

0.007

3406N-6

6

110

52

63.34

174

85

79

20

2000

2500

0.01

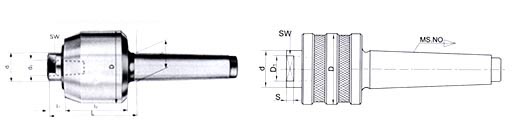

Multi-purpose Live Center
3408H series
3408M series

Item No.

MS.NO

D

d

d1

L1

l1

l2

d2

SW

max.speed
rpm

max.loab
(N)

Accuracy
(mm)

3408H-2

2

45

20

17.98

59

10

43

12

17

5000

50

0.005

3408H-3

3

60

24

23.82

68

11

50

14

19

4300

200

0.005

3408H-4

4

76

32

31.26

79

13

58

18

27

3200

300

0.007

3408H-5

5

96

42

44.39

98

14

72

24

36

2600

800

0.01

3408M-2

2

45

25

17.98

52

11

36

14

19

5000

1500

0.01

3408M-3

3

52

28

23.82

57

13

44

16

21

4200

2000

0.012

3408M-4

4

61

32

31.26

69.5

13

50

18

27

3200

3200

0.018

3408M-5

5

90

45

44.39

94.5

14

74

24

36

1200

6300

0.020

Constant Face Driver
3409 series
It's maily used to process axis type workpiece. Driving plate propelled by 3 floating gydraulic cylinder to stab to the end of wordpiece and made the workpiece rotate. When the end face and the axis is not perpendicular within5 กใ ,constant face driver can work regularly.

Model NO

Morse taper

Cutting range(mm)

Remarks

3409-3

M.T3

11-80

Left

3409R-3

Right

3409-4

M.T4

11-80

Left

3409R-4

Right

3409-5

M.T5

11-80

Left

3409R-5

Right

3409-6

M.T6

17-160

Left

3409R-6

Right

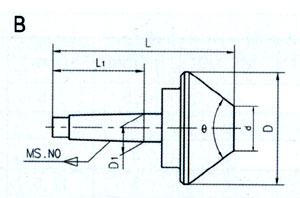

Bull Nose Center
3410
Item No.
MS.NO
D(mm)
D1(mm)
L(mm)
d(mm)
3410-S2-85
2
85
17.780
126
12
75°
3410-S2-60
2
60
17.780
137
20
60°
3410-S270
2
70
17.780
137
20
60°
3410-S3-80
3
80
23.825
166
25
60°
3410-S3-90
3
90
23.825
169
25
60°
3410-S3-100
3
100
23.825
160
32
70°
3410-S4-100
4
100
31.267
206
30
60°
3410-S4-110
4
110
31.267
184
32
75°
3410-S4-160
4
160
31.267
210
35
75°
3410-S4-80
4
80
31.267
167
12
75°
3410-S4-200
4
200
31.267
225
40
75°
3410-S5-80
5
80
44.399
199
12
75°
3410-S5-100
5
100
44.399
206
32
75°
3410-S5-120
5
120
44.399
251
40
60°
3410-S5-200
5
200
44.399
252
40
75°
3410-S5-250
5
250
44.399
281
56
75°
3410-S6-250
6
250
63.348
335
56
75°
