FOUR-JAW INDEPENDENT CHUCKS
K72 -- FOUR-JAW INDEPENDENT CHUCKS

K72 chucks can be directly mounted to the spindle noses of the machine tools in three ways A2、C and Dforms(The specification conform to GB/T5900.1-GB/T5900.3 (ISO0702)standard).

Independent and adjustable,suitable for machining all kinds of secial-shaped workpieces.

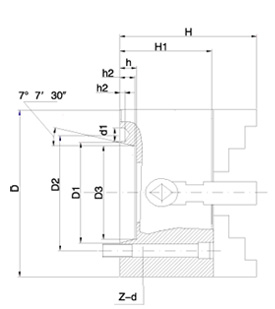

Dimension characterstic parameters
Size Short taper
NO.		 D1 D2 D3 H H1 h h1 h2 d1 z-d
160 4 63.513 82.6 45 93 65 13 10 6.5 14.7 4-M10
200 4 63.513 82.6 56 107 75 13 10 6.5 14.7 4-M10
250 4 63.513 82.6 61 120 80 - 10 6.5 14.7 4-M10
320 350 4 63.513 82.6 61 134 90 - 10 6.5 14.7 4-M10
200 5 82.563 104.8 56 107 75 15 12 6.5 16.3 4-M10
250 5 82.563 104.8 75 120 80 15 12 6.5 16.3 4-M10
320 350 5 82.563 104.8 79 134 90 - 12 6.5 16.3 4-M10
400 5 82.563 104.8 79 143 95 - 12 6.5 16.3 4-M10
200 6 106.375 133.4 56 107 75 16 13 6.5 19.5 4-M12
250 6 106.375 133.4 75 120 80 16 13 6.5 19.5 4-M12
320 350 6 106.375 133.4 95 134 90 16 13 6.5 19.5 4-M12
400 6 106.375 133.4 95 143 95 16 13 6.5 19.5 4-M12
500 6 106.375 133.4 103 107 106 - 13 6.5 19.5 4-M12
250 8 139.719 171.4 75 120 80 18 14 8.0 24.2 4-M16
320 350 8 139.719 171.4 95 134 90 18 14 8.0 24.2 4-M16
400 8 139.719 171.4 125 143 95 18 14 8.0 24.2 4-M16
500 8 139.719 171.4 136 161 106 18 14 8.0 24.2 4-M16
320 350 11 196.869 235.0 95 120 90 - 16 8.0 24.2 4-M16
400 11 196.869 235.0 125 134 95 20 16 10.0 29.4 4-M20
500 11 196.869 235.0 160 143 106 20 16 10.0 29.4 4-M20
630 11 196.869 235.0 180 161 118 20 16 10.0 29.4 4-M20
800 11 196.869 235.0 185 180 132 20 16 10.0 29.4 8-M20
500 15 285.775 330.2 160 202 106 20 17 10.0 35.7 4-M24
630 15 285.775 330.2 180 161 118 21 17 10.0 35.7 8-M24
800 15 285.775 330.2 210 202 132 21 17 10.0 35.7 8-M24
1000 15 285.775 330.2 280 230 150 21 17 10.0 35.7 8-M24
630 20 412.775 463.6 180 118 118 23 19 10.0 42.1 8-M24
Two-piece jaw sets on request top jaws with tonguegroove conforming to ISO3442.
