FOUR-JAW INDEPENDENT CHUCKS

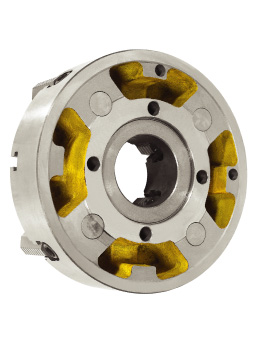

K72 -- FOUR-JAW INDEPENDENT CHUCKS
Form D:mounting with studs for camlocks
Size Short taper

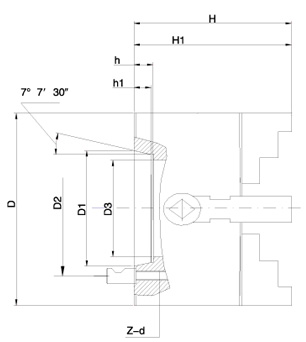

NO.		 D1 D2 D3 H H1 h h1 z-d
160 3 53.975 70.6 45 93 65 13 10 3-M10×1
200 3 53.975 70.6 51 107 75 - 10 3-M10×1
200 4 63.513 82.6 56 107 75 13 10 3-M10×1
250 4 63.513 82.6 61 120 80 - 10 3-010×1
320 350 4 63.513 82.6 61 134 90 - 10 3-M10×1
200 5 82.563 104.8 56 107 75 15 12 6-M12×1
250 5 82.563 104.8 75 120 80 15 12 6-M12×1
320 350 5 82.563 104.8 79 134 90 - 12 6-M12×1
400 5 82.563 1004.8 79 143 95 - 12 6-M12×1
250 6 106.375 133.4 75 120 80 16 13 6-M12×1.5
320 350 6 106.375 133.4 95 134 90 16 13 6-M16×1.5
400 6 106.375 133.4 95 143 95 16 13 6-M16×1.5
500 6 106.375 133.4 103 161 106 - 13 6-M16×1.5
320 350 8 139.719 171.4 95 134 90 18 14 6-M20×1.5
400 8 139.719 171.4 125 143 95 18 14 6-M20×1.5
500 8 139.715 171.4 136 161 106 - 14 6-M20×1.5
400 11 1963.869 235.0 125 143 95 20 16 6-M22×1.5
500 11 196.869 235.0 160 161 106 20 16 6-M22×1.5
630 11 196.869 235.0 180 180 118 20 16 6-M22×1.5
500 15 285.775 330.2 160 161 106 21 17 6-M24×1.5
630 15 285.775 330.2 180 180 118 21 17 6-M24×1.5
Two-piece jaw sets on request top jaws with tonguegroove conforming to ISO3442.
