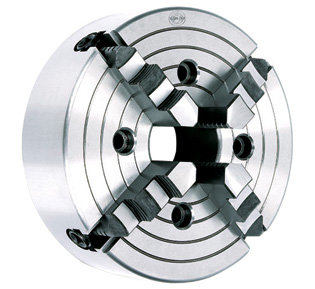

FOUR-JAW INDEPENDENT CHUCKS
FOUR-JAW INDEPENDENT CHUCKS


Application
Recommended for processing of processing of non-ferrous metals,non-metals like plastics and so on.
Features
1.High precision short cylindrical center mounting .
2.Flimsy parts are specifically engineered by quenching,for greater durability and extended life.
3.Adjusted independently to center,suitable for processing special with superior gripping force.
Dimension parameters
Size D1 D2 D3 H H1 h z-d Max.input torque
Max.speed
r/min
80 55 66 22 56 42 3.5 4-M6 25 4000
100 72 84 25 54 54 3.5 4-M8 30 3500
125 95 108 30 78 56 4.5 4-M8 50 3000
160 65 95 45 93 75 5 4-M10 70 2500
200 80 112 56 107 80 6 4-M10 100 2000
250 110 130 75 120 90 6 4-M12 150 1600
300 152 130 75 134 90 6 4-M12 180 1200
320 140 165 95 134 90 6 4-M16 200 1200
350 130 168 95 134 90 6 4-M16 250 1200
400 160 185 125 143 95 8 4-M16 280 1000
450 180 205 140 147 100 8 4-M16 300 900
500 200 236 160 161 106 8 4-M20 350 800
630 220 258 180 180 118 10 4-M20 400 600
800 250 300 210 202 132 12 4-M20 500 500
1000 320 370 260 230 150 15 4-M20 600 400
Two-piece jaw sets on request top jaws with tongue groove conforming to ISO3442
