WEDGE-TYPE HIGH-SPEED POWER CHUCKS
KT5R -- WEDGE-TYPE HIGH-SPEED POWER CHUCKS
¡¤This series chucks can be directly connected to the spindle noess of the machine tools, With nice rigidity and high accuracy.
¡¤Having all the characteristics of wedge-type high -speed power series chucks, also can clamp smaller rod materials.
¡¤Matched with the soft jaws.
Dimension parameters
Size D D1 D2 H1 H h h1 B B1 d1 d2 Z-d
160 165 82.563 104.8 84 119 15 6.5 36 86.5 16.3 M16 6-M10
200 210 106.375 133.4 97 139 17 6.5 36 110 19.5 M20 6-M12
250 254 139.719 171.4 102 148 18 8 36 140 24.2 M20 6-M16
315 315 196.869 235 125 186 20 10 48 145 29.4 M24 6-M20

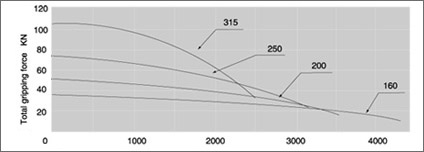

Characteristic parameters
Size Lmax
Axial wedge stroke 		Jaw stroke t(Dia.) JMax.drawpull Gripping force r/min
Jamming range 		Jamming range Gripping force Rec.cylinder Unit Price
160 20 8.5 18 52.5 5270 19-165 30-165 P22 125
200 21 8.8 25 75 4760 23-210 36-210 P22 160
250 25 8.8 29 108 4010 24-254 45-254 P22 160
315 30 10.6 53 156 3300 40-315 60-315 P22 200
