FRONT-MOUNTED POWER CHUCKS WITH THROUGH-HOLE
KT53 -- FRONT-MOUNTED POWER CHUCKS WITH THROUGH-HOLE
·Short cylindrical center mounting.
·With high sealing reliability, high center accuracy,easy adjustment,clamping reliably and rotating steadily.
Suitable for machining the plate components especially for the automobile wheel hubs.
·The chucks are special equipment for the CK516B vertical lathes and also can be used for the other machine tools.
·The different soft jaws can be provided,as requested.

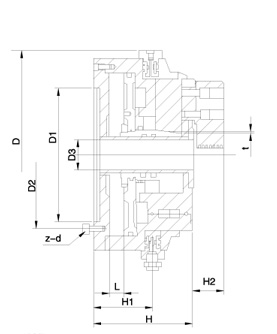

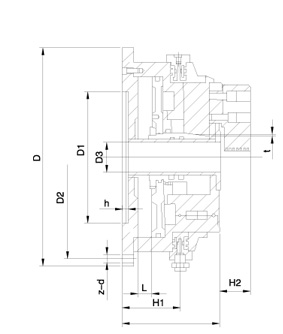

Dimension parameters
Size D D2 D3 D4 h H H1 H2 L t z-d MPa Max.
pressure		 r/min
Jamming range
200 - 165 180 52 6.5 134 - - 25 9 6-M10(13) 0.8 1200
250 368 225 250(344) 55 8 165 96.5 56 25 8.8 6-M12(13) 1.0 1000
315 406 225 250(350) 90 8 187 113 68 30 16 6-M12 1.0 800
400 - 340 368 140 8 199 - - 34 12 6-M16 1.0 500
500 - 440 465 240 8 222 - - 43 15 6-M16 1.0 300
Note:The ()on the above table are suitable for the left figure.
