ELECTRIC CHUCKS

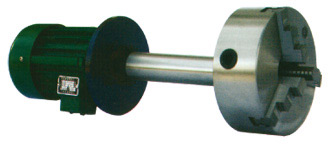

KD11 ELECTRIC CHUCKS
Dimension parameters
Size D1 D2 D3 H H1 h Z-d r/min
Jamming range		 Max.gripping force
200 165 180 35 118 82 5 3-M10 2000 4200
250 206 226 45 140 88 5 3-M12 1500 5000

Short cylindrical center mounting.
The power source is driving motors and the chocks can center and clamp automatically.
The clamping force can be adjusted.
Suitable for machining plate and rod shaped components.
Suitable for NC lathes, automatic lathes and common lathes.
Clamping range
  Internal jaw External jaw
Jamming range Gripping force Jamming range
A-A1 B-B1 C-C1
200 4-85 65-200 22-63
250 6-110 80-250 30-80
