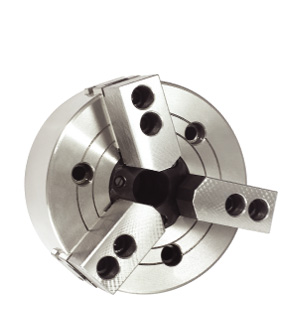

WEDGE-TYPE HIGH-SPEED POWER CHUCKS WITH LARGE THROUGH-HOLE
K55-IV -- WEDGE-TYPE HIGH-SPEED POWER
CHUCKS WITH LARGE THROUGH-HOLE
¡¤Short cylindrical
center connection.
¡¤Having all the characteristics of
wedge-type high-speed power with through-hole series chucks,
also can clamp smaller rod materials.
¡¤The chucks have
large through-hole which is suitable for the precision
machining of the rod workpieces.
Dimension parameters
Size
D
D1
D2
H1
H
h
h1
B
B1
d1
d2
Z-d
125
135
110
82.6
33
M40 ¡Á 1.5
48
57
99
4
20
0
3-M10
160
169
140
104.8
45
M55 ¡Á 2.0
61
80
123
4
22
-4
6-M10
200
210
170
133.4
52
M60 ¡Á 2.0
68
95
145
5
25
-4
6-M12
250
254
220
171.4
75
M85 ¡Á 2.0
93
100
152
5
25
-5
6-M16
315
254
300
235
100
M110 ¡Á 2.0
120
115
182
6
30
-6
6-M20

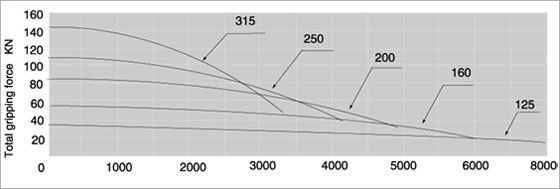

Characteristic parameters
Size
Lmax
Axial wedge stroke
Jaw stroke t(Dia.)
JMax.drawpull
Gripping force
r/min
Jamming range
Jamming range
Gripping force
Rec.cylinder
125
13
5.4
14
36
7000
8-110(125)
50(25)-110(125)
P25125
160
17
6.0
19
57
6000
12-140(160)
60(30)-140(160)
P25125
200
20
7.0
29
86
5000
16-180(200)
75(36)-180(200)
P25125
250
20
8.5
42
111
4200
25-230(250)
96(45)-230(250)
P25160
315
25
10.6
55
144
3300
50-300(315)
110(36)-300(315)
P25160
Note:The()on the above table is for soft jaw chucks.
