THREE-JAW SELF-CENTRING PRECISION CHUCKS

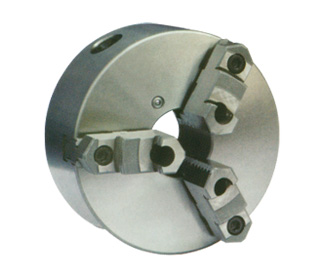

TKM11 -- THREE-JAW SELF-CENTRING PRECISION CHUCKS
Short cylindrical center mounting.
The selt-centring precision inspecting items rezch or exceed the required international standards of grade 1(precision grade) of chucks.
Dimension characterstic parameters
Size D D1 D2 D3 H H1 h z-d
85 86 60 73 16 65 49 3.5 3-M6
130 132 100 115 32 80 60 5 3-M8
165 167 130 147 45 92 66.5 4.5 3-M10
190 192 155 172 58 106 76 5 3-M10
190A 192 155 172 58 121 76 5 3-M10
230 233 190 210 70 116.5 81 6.5 3-M12
230A 233 190 210 70 133 81 6.5 3-M12
310 315 260 285 100 134.5 90 6 3-M12
