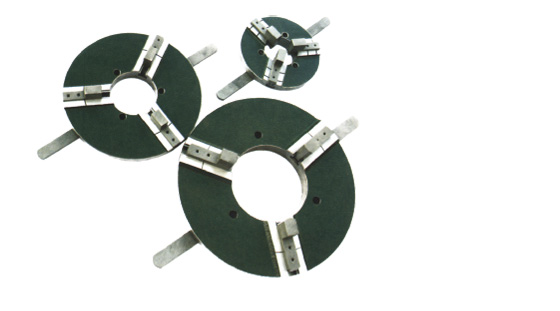

THREE-JAW MANUAL CHUCKS
KH01 -- THREE-JAW MANUAL CHUCKS


Application
Recommended for the processing of non-ferrous metals, non-metals like plastics and so on.
Features
1. High precision short cylindrical center mounting.
2. The compact chucks are in small volume, and user comfort.
3. The ideal chuck for welding and cutting pipe workpieces.
4. High self-centring precision with superior gripping force to meet precision processing demands.
5. Flimsy parts are specifically engineered by quenching, for greater durability and extended life.

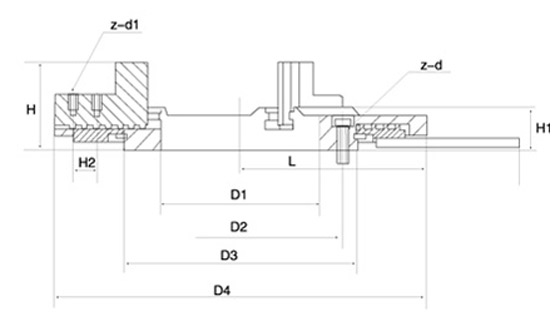

Dimension parameters
Size D1 D2 D3 D4 D5 H H1 H2 l z-d1 z-d
200 80 100 120 200 200 67.5 32 21 200 6-M6 3-M8
300 100 120 150 300 300 67.5 32 21 240 6-M6 3-M8
400 170 220 250 400 400 95 45 25 300 6-M6 3-M10
