TAPER HANDLE CHUCKS
KB -- TAPER HANDLE CHUCKS
The chucks are available for ligh-duty processing mounted on machine tools with 5C spring collet.
With short mounting time.high centring percision,and large clamping range.
There are two types such as KB11(three jaw self-centring chucks) and KB72(four-jaw independent chucks).
The mounting structure dimensions can be provided as orquested.

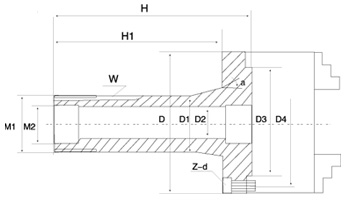

Dimension characterstic parameters
Size D D1 D2 D4 D5 a M1 M2 w H h1 z-d
KB11 3" 80 31.737 19.45 55 66 10กใ 1.238"-20Ns 1.042"-24Ns

3.175
Key groove
width

 105 86.12 3-M6
KB11 4" 100 31.737 19.45 72 84 10กใ 1.238"-20Ns 1.042"-24Ns 105 86.12 3-M8
KB72 3" 80 31.37 19.45 55 66 10กใ 1.238"-20Ns 1.042"-24Ns 105 86.12 4-M6
KB72 4" 100 31.737 19.45 72 84 10กใ 1.238"-20Ns 1.042"-24Ns 105 86.12 4-M8
