WEDGE-BAR MANUALLY THREE-JAW SELF-CENTRING MANUAL CHUCKS
K80 -- WEDGE-BAR MANUALLY THREE-JAW SELF-CENTRING MANUAL CHUCKS
Short sylindrical center connection.
High speed, high gripping force, high accuracy and quick jaw-change.
Manually clamping and jaws chaning.
With gripping force compensation.

Dimension parameters
Size D D1 D2 D3 h H L a M Z-d
200 206 185 164 52 5 86 53.5 18° 12 3-M12
250 255 235 200 75 6 98 67 19°30' 14 3-M16
Characteristic parameters

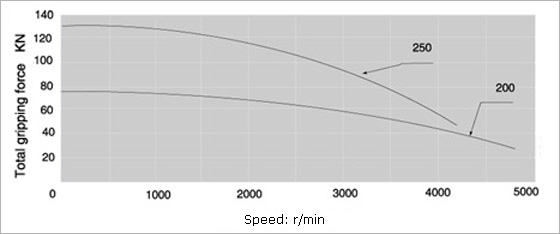

Size Max.input torque Gripping force r/min
Jamming range 		Jamming range Gripping force
200 120 75 4800 7-207 71-214
250 160 130 4200 8-253 99-261
