SPRING AIR-ACUATED CHUCKS FOR PIPE MACHINING
K58 -- SPRING AIR-ACUATED CHUCKS FOR PIPE MACHINING
The chucks adopt cylindrical center mounting.
Large thru-hole, spring clamping, air-operated loosing and high accuracy clamping.
A machine tool shall be equipped with two chucks.
The chuck is suitable for petroleum, chemical engineering, geological and metallurgy fields.
The product is a special chuck matched with the pipe CNC machine tool.

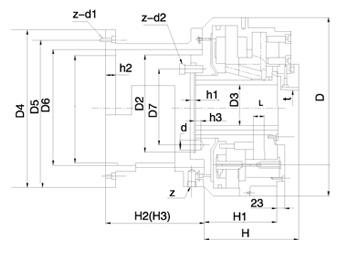

Dimension parameters
Size D1 D2 D3 D4 D5 D6 D7 d h1 h2 h3 H
400 250 180 85 315 285 256 145 19.5 15 20 10 190
500 320 250 125 440 380 326 210 25.4 15 25 15 204
550 400 330 205 470 445 406 290 25.4 15 20 10 210
650 500 420 260 600 560 506 320 25.4 15 20 10 230

Characteristic parameters
Size H1(H2) H Z Z-d1 Z-d2 Lmax
Axial wedge stroke 		Jaw stroke t(Dia.) Jamming range
400 160(255) 240 G3/8″ 6-M10 6-M12 30 16 20-80
500 171.5(265.5) 268.5 G1/2″ 6-M10 6-M16 36 19 75-120
550 161.5(255.5) 268 G1/2″ 7-M10 6-M16 36 19 60-200
650 175(270) 290 G1/2″ 7-M10 6-M16 36 19 100-255
