THREE-JAW ADJUSTABLE SELF-CENTRING CHUCKS

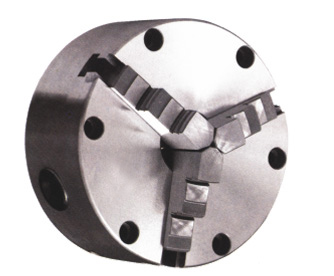

K31 -- THREE-JAW ADJUSTABLE SELF-CENTRING CHUCKS

Application
Recommended for the processing of non-ferrous metals, non-metals like plastics and so on.
Features
1.High precision short cylindrical center mounting.
2.Flimsy parts are specifically engineered by quenching, for greater durability and extended life.
3. High self-centring precision with superior gripping force to meet the precision processing demands.
4£®Provided with a set internal jaws and external ones according to the requirements.
5. All kinds of soft jaws can be provided.

Dimension characterstic parameters
Size D D1 D2 D3 H H1 h z-d
130 132 55 113 30 88 62 11.5 6-M8
165 165 80 145 40 12 72 13.5 6-M8
167A 167 80 147 44 114.5 70 16 3-M10
200 204 120 180 65 112 78 13.5 6-M10
210A 210 120 190.5 63 124 76 16 3-M10
250C 254 150 226 80 138 88 18 6-M12
325C 330 200 296 100 158.5 100 20.5 6-M16
