THREE-JAW SELF-CENTRING CHUCKS

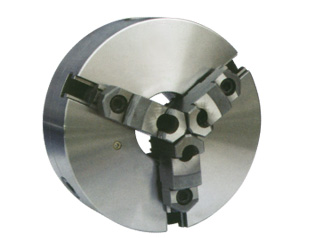

K15 -- THREE-JAW SELF-CENTRING CHUCKS
Short cylindrical center mounting.
Steel body and suitable for higher rotation speed.
The model of the jaws are one-piece jaws and two-piece jaws for form A¡¢D(conform to ISO3442 standard).

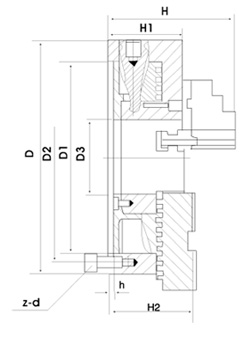

Dimension characterstic parameters
D1 D2 D3 H H1 H2 h z-d
Max.input torque
Nm		 Max.speed
80 56 67 16 66 50 - 3.5 3-M6 40 5200
100 70 83 20 5 55 - 3.5 3-M8 60 4800
125 95 108 32 84 58 - 4 3-M8 100 4300
160 125 140 42 95 65 - 5 6-M10 160 3800
160A 125 140 42 109 65 71 5 6-M10 160 3800
200 160 176 55 109 75 - 5 6-M10 250 3100
200A 160 176 55 122 75 80 5 6-M10 250 3100
250A 200 224 76 120 80 - 5 6-M12 320 2700
250A 200 224 46 136 80 86 5 6-M12 320 2700
315 260 286 103 147 90 - 6 6-M16 400 2000
315A 260 286 103 153 90 95 6 6-M16 400 2000
400D 330 362 136 172 100 108 6 6-M16 500 1500
500D 420 458 190 202 115 126 6 6-M16 630 110
500A 420 458 190 202 115 126 6 6-M16 630 110

Clamping range
Size Internal jaw External jaw
Clamping range Jamming range Clamping range
A-A1 B-B1 C-C1
80 2-22 25-70 22-63
100 2-30 30-90 30-80
125 2.5-40 38-125 38-110
130 3-40 40-130 40-120
160 3-55 50-160 55-145
165 4-60 52-165 55-150
190 4-70 65-190 65-190
200 4-82 65-200 65-200
240 6-100 80-250 90-250
250 6-110 80-250 90-250
315 10-140 65-315 100-315
320 11.5-145 95-320 100-320
325 11.5-165 95-350 110-340
380 11.5-210 95-400 110-400
400 15-210 120-400 120-400
500 25-280 150-500 150-500
630 50-350 170-630 170-630
