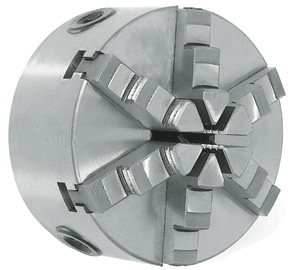

SIX-JAW SELF-CENTRING CHUCKS
K13 -- SIX-JAW SELF-CENTRING CHUCKS

1.Short cylindrical center mounting.
2.K13 chucks are matched with stepped jaws.
3.K13-Ⅱchucks are matched with sloped jaws.
4.Suitable for clampong and machining the thin-walled somponents.
5.Especially suitable for machining all kinds of cutting tools with handles.

Dimension characterstic parameters
Size D D1 D2 D3 H H1 h z-d
4" 100 72 84 26 73 53.5 3.5 3-M8
5" 130 100 115 35 86 60 3.5 3-M8
6" 165 130 145 42 96.5 66.5 4.5 3-M8
8" 200 165 180 65 109 75 5 3-M10
10" 252 206 226 80 120 80 5 3-M12
