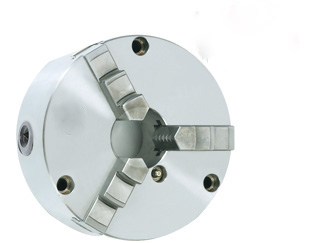

THREE-JAW SELF-CENTERING STEEL CHUCK
K11-THREE-JAW SELF-CENTERING STEEL CHUCK

Features:
1£®High precision short cylindical center mounting and the mounting.
2£®High quality steel body suitable for higher rogher rotation speed.
3£®Flimsy parts are specifcally engineered by quenching,for greater durability and extendedlife.
4£®High self-centring precision and superior grinpping force to meet the precision processing demands.
Dimension characterstic parameters
Size D1 D2 D3 H H1 H2 h z-d Max.input torque Max.speed
80 55 66 16 66 50 - 3.5 3-M6 40 4000
100 72 84 22 74.5 55 - 3.5 3-M8 60 3500
125 95 108 30 84 58 - 4 3-M8 100 3000
130 100 115 30 86 65 - 3.5 3-M8 100 3000
160 130 142 40 95 65 - 5 3-M8 160 2500
165 130 145 40 96.5 75 - 4.5 3-M8 250 2500
190 155 172 55 105 75 - 5 3-M10 250 2000
200 165 180 65 109 75 - 5 3-M10 250 2000
240 195 215 70 120 80 - 8 3-M12 320 2000
250 206 226 80 120 80 - 5 3-M12 320 1000
315 260 285 100 147 90 - 6 3-M16 400 1200
320 270 290 100 152.5 90 - 11 3-M16 400 1200
325 372 396 100 153.5 100 - 12 3-M16 400 1200
380 325 350 135 155.7 115 - 6 3-M16 500 1000
