DIRECT MOUNTING THREE-JAW SELF-CENTRING CHUNCK

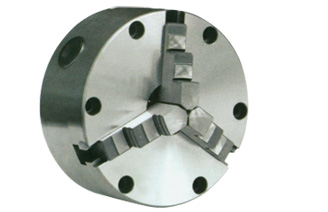

K31 -- DIRECT MOUNTING THREE-JAW SELF-CENTRING CHUNCK
Mounted with the machine spindle nose as follows:
1.At first, the adapter plate for form A2 can be mounted with the machine spindle nose.
2.Secondly,the chuck can be mounted with the adapter plate from front.The sructure of the jaws includes one-piece ones and two piece ones for form A,C.
Dimension characterstic parameters
Model D D1 D2 D3 D4 d1 H1 h h1 h2 z-d
165/A25 165 82.563 104.8 40 133 16.3 82 13 7.5 21 6-M10
200/A25  200C/A25  200A/A25 200 106.375 133.4 65 165 19.5 95 16 8 23 6-M12
250/A26  250C/A26  250A/A26 250 106.375 133.4 80 165 19.5 105 14 8 20 6-M12
250/A28  250C/A28  250A/A28 250 139.719 171.4 80 210 24.2 105 16 10 25 6-M16
315/A28  315/A2 315 139.719 171.4 80 210 24.2 105 16 10 25 6-M16
315/A211  315/A211 315 196.869 235 100 280 29.4 120.5 16 10 31 6-M20
400D/A28 400 139.719 171.4 130 210 24.2 129 16 8 23 6-M16
400D/A211 400 196.869 235 130 280 29.4 130.5 16 10 27 6-M20
50D/A211  500D/A211 500 196.869 235 210 280 29.4 145 16 10 27 6-M20
