SHOTR-TAPER THREE-JAW SELF-CENTRING CHUCK

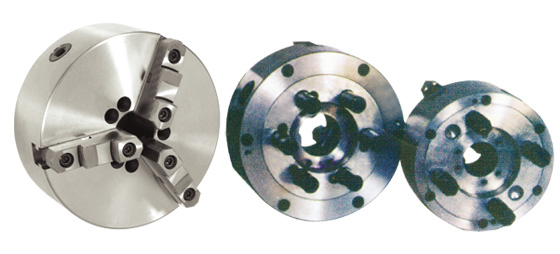

K11 -- SHOTR-TAPER THREE-JAW SELF-CENTRING CHUCK

Mounted directly with the machine spindle nose and with nice rigidty and high accuracy.

The chuck mounting types are classified as form A1¡¢A2¡¢C and D.The connecting dimensions conform to GB/T5900.1-GB/5900.3(ISO702) standards.

The structure types of jaws are classified as one-piece jaws,two-piece jaws for form A and form C.

Selection table for no of sindle noses to K11 chucks
Size Series No.
¢ñ ¢ò ¢ó
Mtg.form
A1 A2 C.D A1 C.D A1 A2 C.D
Short-taper No.
125 - - 3 - 4 - - -
160 - - 4 - 5 - - 3
200 5 - 5 6 6 - 4 4
250 6 - 6 8 8 5 5 5
315 8 - 8 - 11 6 6 6
400 11 - 11 - 15 8 8 8
500 15 - 15 - - 11 11 11
630 15 15 15 - 20 - 11 11
