THREE-JAW MANUAL CHUCKS

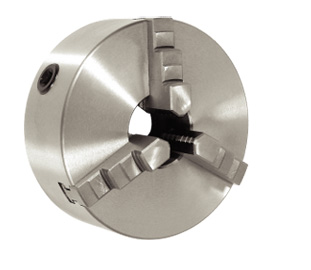

K01 -- THREE-JAW MANUAL CHUCKS
Application
Recommended for meter machine tools in the processing of non-ferrous metals, non-metals like plastics and so on.
Features
1.High precision short cylindrical center mounting and the thread mounting.
2. The compact chucks are in small volume, and user comfort.
3. High self-centring precision with superior gripping froce to meet precision processing demands.
4.Flimsy parts are specifically engineered by quenching, for greater durability and extended life.
Dimension characterstic parameters
Size D D1 D2 D3 D4 D5 H H1 h h1 h2s z-d M Clamping
range
Jamming
range
63 14.1 22 28 14 36 68 34 25 6 5 8 3-M4 m14กม1 1-50 16-50
80 16.1 25 35 16 45 84 42 30 6 5 9.5 3-M5 M16กม1 1.5-70 20-70
100 24.1 32 42 22 52 104 52 36.5 6 5 13.5 3-M6 M24กม1.5 2-90 26-90
