KT55T-IV -- TWO-JAW WEDGE-TYPE
HIGH-SPEED POWER CHUCKS WITH LARGE THROUGH-HOLE
|
 |
·This series chucks can be directly connected to
the spindle noess of the machine tools, with nice rigidity and
high accuracy.
·Large through-hole, high rotation
speed.
·The chucks are suitable for machining all kinds of
irregular workpieces. |

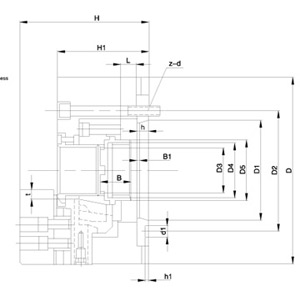

| Size |
D |
D1 |
D2 |
D3 |
D4 |
D5 |
H1 |
H |
h |
B |
B1 |
d1 |
Z-d |
| 125 |
135 |
63.513 |
82.6 |
33 |
M40 x 1.5 |
45 |
71 |
97 |
15 |
17.5 |
16 |
14.7 |
4-M10 |
| 160 |
169 |
82.563 |
104.8 |
45 |
M55 x 2.0 |
60 |
91 |
120 |
15 |
19 |
26 |
16.3 |
6-M10 |
| 200 |
210 |
106.375 |
133.4 |
52 |
M60 x 2.0 |
66 |
108 |
147 |
17 |
20.5 |
31.5 |
19.5 |
6-M12 |
| 250 |
254 |
139.719 |
171.4 |
75 |
M85 x 2.0 |
94 |
113 |
156 |
18 |
25 |
26.2 |
24.2 |
6-M16 |
| 315 |
315 |
196.869 |
235 |
100 |
M110 x 2.0 |
120 |
124 |
175 |
20 |
28 |
28 |
29.4 |
6-M20 |
| Characteristic parameters
|
| Size |
Lmax
Axial wedge stroke |
Jaw stroke t(Dia.) |
JMax.drawpull |

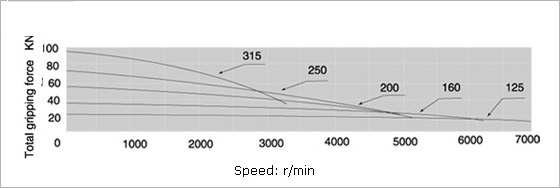

Gripping force |
r/min
Jamming range |
Jamming range |
Gripping force |
Rec.cylinder |
| 125 |
10 |
5.4 |
10.8 |
24 |
7000 |
12-135 |
25-125 |
P25125 |
| 160 |
12 |
5.5 |
15 |
38 |
6000 |
14-169 |
30-169 |
P25125 |
| 200 |
18 |
7.6 |
23.2 |
57.3 |
5000 |
14-210 |
36-210 |
P25125 |
| 250 |
19 |
8.8 |
30 |
74 |
4200 |
31-254 |
45-254 |
P25160 |
| 315 |
23 |
10.6 |
38.8 |
96 |
3300 |
50-315 |
36-315 |
P25160 |
|
