KT54T -- TWO-JAW WEDGE-TYPE
HIGH-SPEED POWER CHUCKS |
 |
 |
 |
¡¤This series
chucks can be directly connected to the spindle noess of the
machine tools, With nice rigidity and high accuracy. ¡¤The chucks are suitable for machining all kinds of irregular workpieces. ¡¤Matched with the soft jaws. |
 |
| Dimension parameters |
| Size | D | D1 | D2 | H1 | H | h | h1 | B | B1 | d1 | d2 | Z-d |
| 160 | 165 | 82.563 | 104.8 | 84 | 123 | 15 | 6.5 | 36 | 86.5 | 16.3 | M16 | 6-M10 |
| 200 | 210 | 106.375 | 133.4 | 97 | 138 | 17 | 6.5 | 36 | 110 | 19.5 | M20 | 6-M12 |
| 250 | 254 | 139.719 | 171.4 | 102 | 148 | 18 | 8 | 36 | 140 | 24.2 | M20 | 6-M16 |
| 315 | 315 | 196.869 | 235 | 125 | 179 | 20 | 10 | 48 | 145 | 29.4 | M24 | 6-M20 |

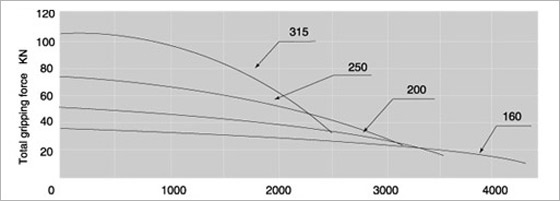

| Characteristic parameters |
| Size | Lmax Axial wedge stroke |
Jaw stroke t(Dia.) | JMax.drawpull | Gripping force | r/min Jamming range |
Jamming range | Gripping force | Rec.cylinder |
| 160 | 20 | 8.5 | 14 | 35.7 | 4300 | 14-165 | 30-165 | P22 125 |
| 200 | 21 | 8.8 | 19.5 | 51 | 3600 | 17-210 | 36-210 | P22 160 |
| 250 | 25 | 8.8 | 28 | 73 | 3100 | 22-254 | 45-254 | P22 160 |
| 315 | 30 | 10.6 | 41 | 106 | 2500 | 40-315 | 60-315 | P22 200 |
