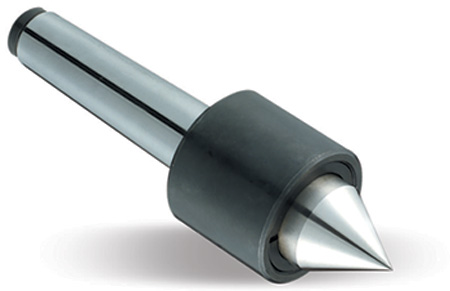

SUPER ROLLING CENTER
SUPER ROLLING CENTER

1.Center is assembled with SKF needle bearing thrust bearing & ball bearing.
2.Applicable to CNC lathes.Can be used at high speed turning and for medium and heavy duty.
3.The shaft is made of alloy steel and through heat treatment (HRC600 ¡À 20) it processes high rigidity and high durability.

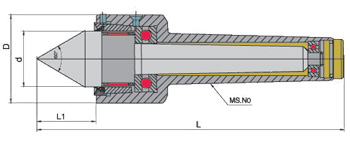

Art.No Size D
(mm)		 d
(mm)		 L
(mm)		 L1
(mm)		 Max Load
Max speed
r/min		 Accuracy
(mm)
3400-480 MT2 36 22 125 25.5 340 6000 0.005
3400-481 MT3 47 30 162 32 400 5000 0.005
3400-482 MT4 55 35 194 37.5 1300 3500 0.005
3400-483 MT5 70 45 240 47 2000 3500 0.005
3400-484 MT6 90 60 318 62 4000 6000 0.005
