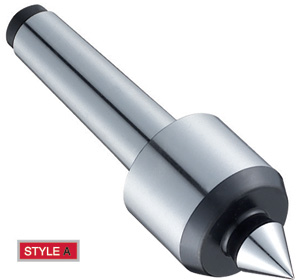

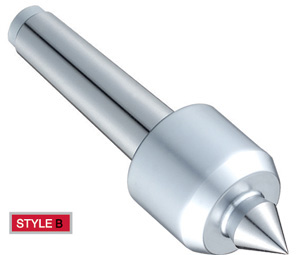

NORMAL TYPE
NORMAL TYPE

1.The center is assembled with ball bearing.
2.Suitable for middle /high speed and light duty.
3.The shaft adopt alloy steel and heat treatment (HRC600 ¡À 20) Super steel trait and durable.

Art.No Model A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 D1
(mm)		 L
(mm)		 Max speed
(rmp)		 Accuracy
(mm)
3400-270 MT1 21 31 56 32 16 108 600 0.005
3400-271 MT2 26 37 69 40 22 132 600 0.005
3400-272 MT3 32 46 86 45 26 164 600 0.005
3400-273 MT4 34 46 108 48 30 188 600 0.005
3400-274 MT5 50 62 136 68 45 248 600 0.005
