SUPER HIGH-SPEED WATER-PROOF TYPE
SUPER HIGH-SPEED WATER-PROOF TYPE

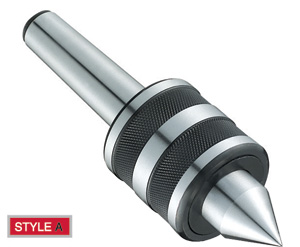

1.Center is assembled with bearing and plane thrust bearing.
2.Can be used at medium speed.
3.The shaft is made of alloy steel and through heat treatment (HRC600 ”Ą 20) it processes super steel trait and high durability.

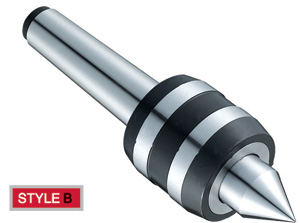

1.The thimble located berel ball bearing.
2.Suitable for CNC machine,high speed and light dutyӢwaterproof and dustproof design.
3.The mandrel adopt alloy steel and heat treatment (HRC600 ”Ą 20) Super steel trait and durability.

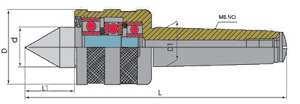

Art.No Model A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 D1
(mm)		 L
(mm)		 Max speed
(rmp)		 Accuracy
(mm)
3400-155 MT3 38 58 86 48 30 182 10000 0.005
3400-156 MT4 45 65 108 62 32 215 10000 0.005
3400-157 MT5 50 70 136 72 40 256 8000 0.005
