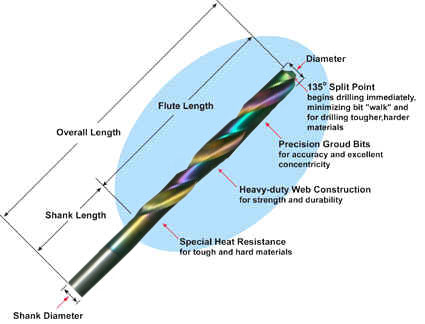

HSS Amber Cobalt Straight Shank Drill Bit, DIN 338

Industrial grade cobalt steel.
135o split point for quick start and no walk application.
Cobalt for much higher hot hardness and abrasion resistance.
Ideal for drilling in steel, stainless steel, heat resistant steel, cast steel, sintered metal, and super alloys.
Dia.1.0-13mm

Art. No.

SPECIFICATION

QTY/BOX (PCS/B)

QTY/CARTON (PCS/C)

NW (KG)

GW (KG)

METRIC (mm)

INCH

YL05CO3010

0.2-1.0

1/64-3/64

1000

40000

8

9

YL05CO3015

1.1-1.5

1/16

500

20000

10

11

YL05CO3020

1.6-2.0

5/64

250

10000

18

19

YL05CO3025

2.1-2.5

5/64-3/32

250

10000

18

19

YL05CO3030

2.6-3.0

7/64

200

8000

19

20

YL05CO3035

3.1-3.5

1/8

200

8000

23

24

YL05CO3040

3.6-4.0

9/64-5/32

100

4000

20

21

YL05CO3045

4.1-4.5

11/64

100

4000

26

27

YL05CO3050

4.6-5.0

3/16

100

2000

18

19

YL05CO3055

5.1-5.5

13/16-7/32

100

2000

22

23

YL05CO3060

5.6-6.0

15/64

100

2000

27

28

YL05CO3065

6.1-6.5

1/4

100

1500

24

25

YL05CO3070

6.6-7.0

17/64

100

1300

24

25

YL05CO3075

7.1-7.5

9/32-19/64

50

900

21

22

YL05CO3080

7.6-8.0

5/16

50

900

26

27

YL05CO3085

8.1-8.5

21/64

50

900

27

28

YL05CO3090

8.6-9.0

11/32

50

500

19

20

YL05CO3095

9.1-9.5

23/64-3/8

50

500

21

22

YL05CO3100

9.5-10.0

25/64

50

500

26

27

YL05CO3105

10.1-10.5

13/32

50

500

27

28

YL05CO3110

10.6-11.0

27/64

50

500

32

33

YL05CO3115

11.1-11.5

7/16-29/64

50

500

21

22

YL05CO3120

11.6-12.0

15/32

50

300

23

24

YL05CO3125

12.1-12.5

31/64

50

300

25

26

YL05CO3130

12.6-13.0

1/2

50

300

28

29

YL05CO3135

13.1-13.5

33/64-17/32

50

300

33

34

YL05CO3140

13.6-14.0

35/64

50

200

34

35
Package & Sets
LCME03TG6131
13pcs HSS Cobalt Drill Bits Set in metal box
LCME03TG6191(METRIC)
19pcs HSS Cobalt Drill Bits
Set in metal box
LCME03TG6192 (METRIC)
19pcs HSS Cobalt Drill Bits Set in BFC box
SPECIFICATION£¨mm£©£º1.5-6.5x0.5mm,plus3.2,4.8mm PACKING£º INNER£º METAL BOX OUTER£º CARTON QTY/CARTON £¨SET£©£º80 CARTON SIZE (cm)£º32.5 x 30 x 28 WEIGHT (KG)/CARTON£º G.W£º17 N.W£º16
SPECIFICATION£¨mm£©£º1,1.5,2,2.5,3,3.5,
4,4.5, 5,5.5,6,6.5,7,7.5,8,8.5,9, 9.5,10
PACKING :INNER£º METAL BOX OUTER£º
CARTON QTY/CARTON £¨SET£©£º25 CARTON
SIZE (cm)£º40 x 25 x 18 WEIGHT (KG)/
CARTON£º G.W£º20 N.W£º19
SPECIFICATION£¨mm£©£º1,1.5,2,2.5,3,3.5,4,4.5, 5,5.5,6,6.5,7,7.5,8,8.5,9, 9.5,10 ACKING:INNER£º INNER£º BFC OUTER£º CARTON QTY/CARTON £¨SET£©£º10 CARTON SIZE (cm)£º52 x 28 x 19 WEIGHT (KG)/CARTON£º G.W£º11 N.W£º8.5
LCME03TG6211 (INCH)
21 PCS HSS Cobalt Drill Bits Set in metal box
LCME03TG6251(METRIC)
25 PCS HSS Cobalt Drill
Bits Set in metal box
LCME03TG6291 (INCH)
29 PCS HSS Cobalt Drill Bits Set in metal box
SPECIFICATION £¨inch£©£º1/16 5/64 3/32 7/64 1/8 9/64 5/32 11/64 3/16 13/64 7/32 15/64 1/4 17/64 9/32 19/64 5/16 21/64 11/32 23/64 3/8 PACKING £º INNER£º BFC OUTER£º CARTON QTY/CARTON £¨SET£©£º10 CARTON SIZE (cm)£º52 x 28 x 19 WEIGHT (KG)/CARTON£º G.W£º12 N.W£º9.5
SPECIFICATION £¨mm£©£º1,1.5,2,2.5,3,3.5,
4,4.5, ,7,7.5,8,8.5,9,9.5,10,10.5,
11,11.5,12,12.5,13 PACKING£º INNER£º
METAL BOX OUTER£ºCARTON QTY/CARTON
£¨SET£©£º12 CARTON SIZE (cm)£º40 x 25
x 18 WEIGHT (KG)/CARTON£º G.W£º20
N.W£º19
SPECIFICATION £¨inch£©£º1/16 5/64 3/32 7/64 1/8 9/64 5/32 11/64 3/16 13/64 7/32 15/64 1/4 64 9/32 19/64 5/16 21/64 11/32 23/64 3/8 25/64 13/32 27/64 7/16 29/64 15/32 31/64 1/2 PACKING R£º METAL BOX OUTER£ºCARTON QTY/CARTON £¨SET£©£º20 CARTON SIZE (cm)£º44 x 27 x 20 WEIGHT (KG)/CARTON£º G.W£º31 N.W£º30
